Lefaucheux 9mm with notch of safety.

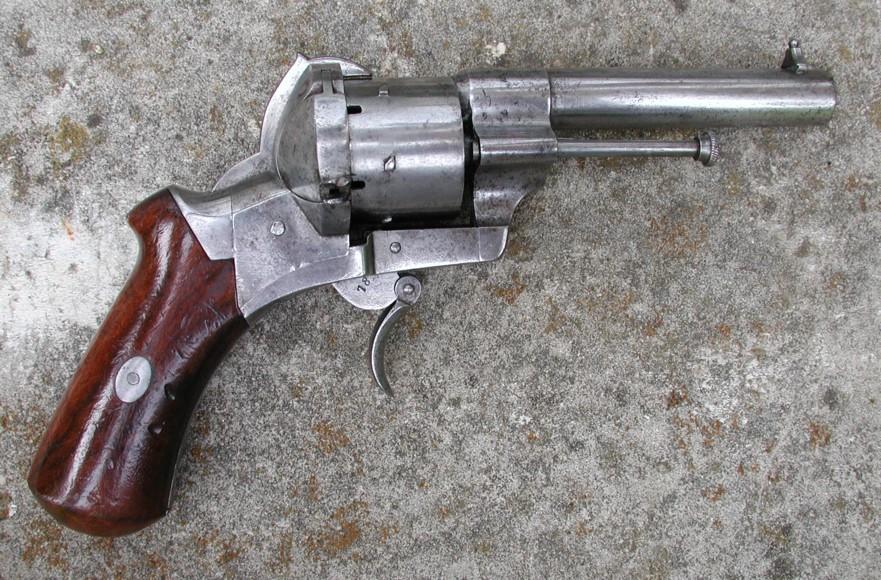

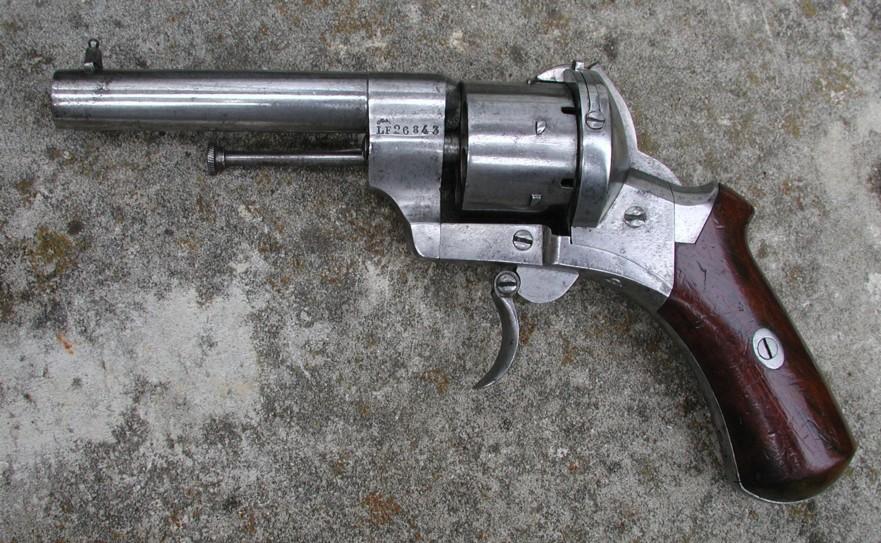

Description of Lefaucheux 9 mm with notch of safety and double action only
This revolver is a simplified version of triple action: the mechanism lost are arise-trigger and its stem of transmission, the hammer with lost its peak. The tail of trigger is articulated without trigger guard.

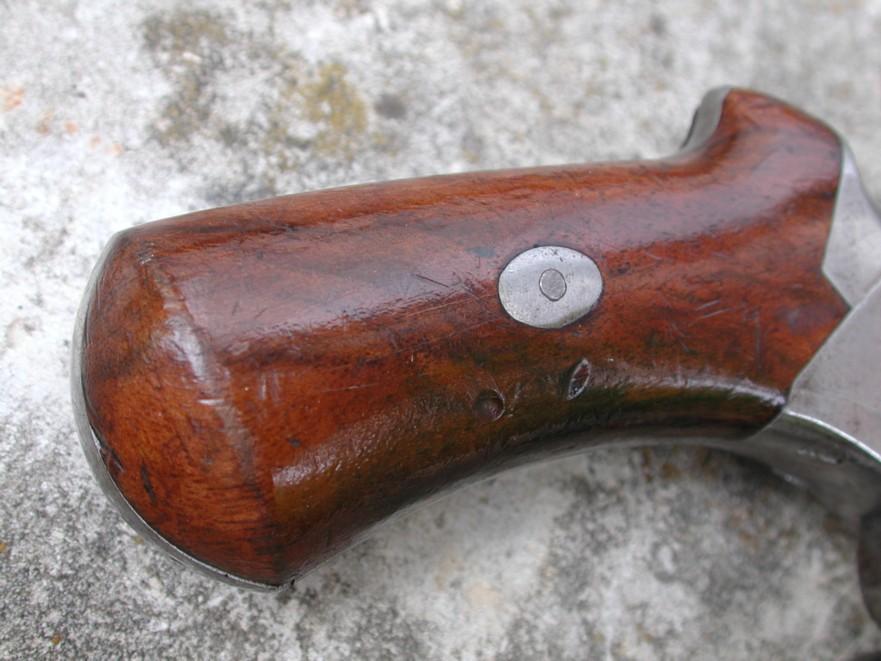

The stick is rounder and does not comprise a ring.

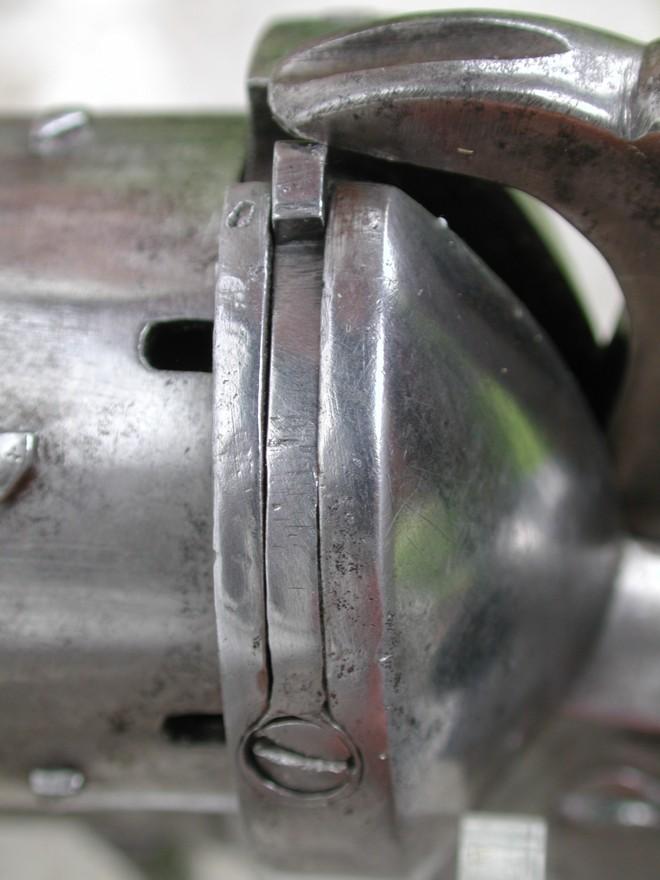

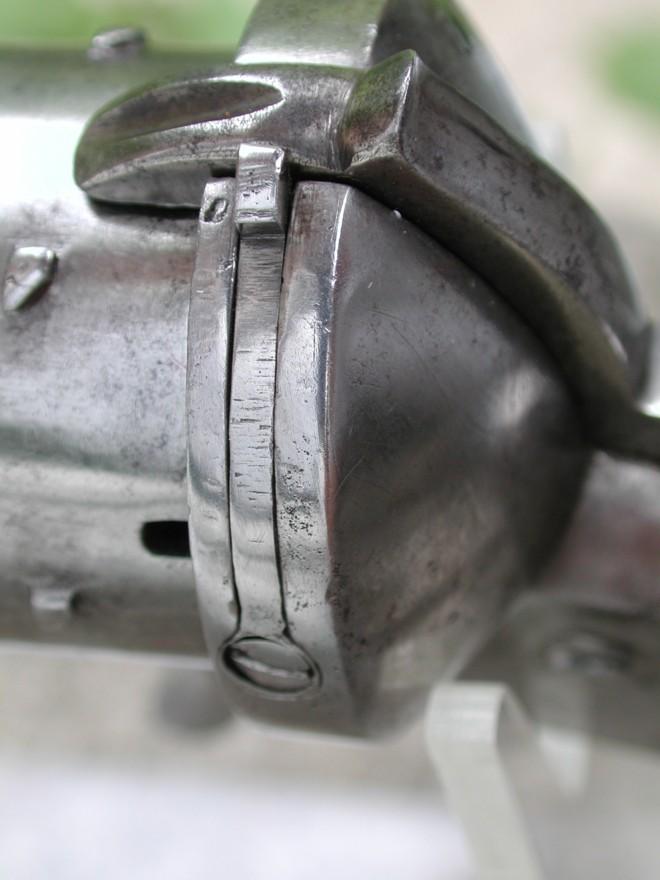

A spring in the shape of arc screwed in periphery of the breech makes it possible to raise the nose of the hammer which, cut down, would block the rotation of the barrel by the possible pins of the cartridges.
This characteristic did not make object of a patent of Eugene Lefaucheux.
Design about 1862
Markings and punches

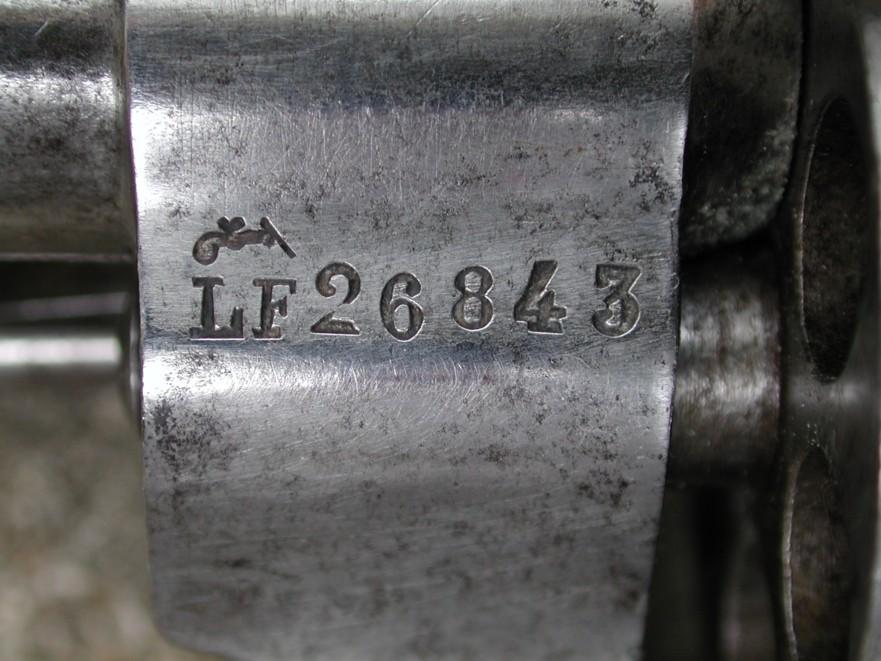

As on the whole of the models of Triple Action marking LF 26843 is in lower part the thunder on the left side.

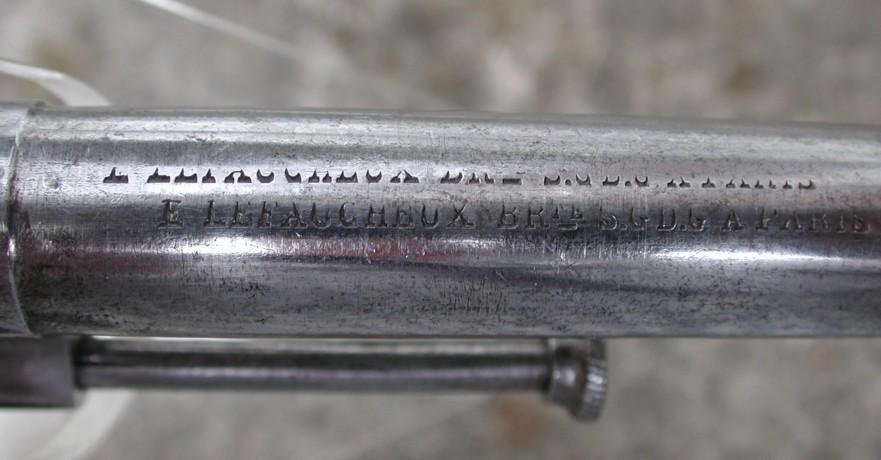

Very curiously on the barrel finds some in “double line”.
“E. LEFAUCHEUX BRte S.G.D.G.A PARIS”…. Error of engraving?
Under and on the plates out of clear wooden: 78 R on the left side and right.
Inside the barrel, cylinder and breech: 78 R.
The trigger comprise also the 78 R, on the other hand the door of loading does not have this marking.
Current weight: 640 grams.
Overall length: 210 mm.
Length of the gun: 100 mm.
Calibre: 9 mm with pin, 6 shots.
Completion: polished white.
Mechanism: double action only.
Guillaume
